Aircraft Grade Aluminium Sheet

What’s aircraft grade aluminum

Aircraft grade aluminium is an ultra-high-strength deformed aluminum alloy, which is currently widely used in the aviation industry. It is of light weight, having replaced steel and occupied the leading position of current aviation materials. Aviation equipment has high requirements for aluminum, which is an important high-end application market for aluminum alloy.

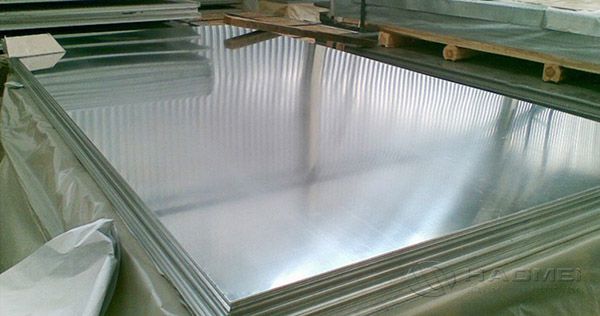

Aircraft grade aluminium.jpg

Features of aircraft aluminum sheet metal

1. The aircraft aluminum sheet metal is of light weight,contributing to the lightweight of airplane and thus helping to save energy consumption.

2. Airplane grade aluminum is of good mechanical and processing performance, good plasticity after solution treatment, and good heat treatment strengthening effect.

3. Generally, it has high strength and good toughness below 150°C (or even higher), making it an ideal structural material.

aircraft aluminum sheet metal.jpg

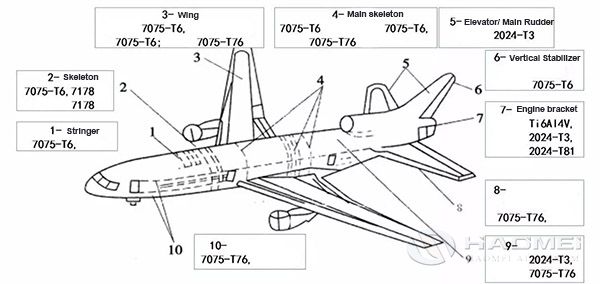

The applications of airplane aluminum

There are many kinds of aluminum plates used on airplanes. Today’s airplane aluminum sheet mainly includes 2 series (2024, 2017, 2A12, etc.) and 7 series((7075, 7475, 7050, 7A04, etc.), and some 5 series (5A06, 5052 , 5086, etc.) and 6 series (6061, 6082, etc.) and a small amount of other series of aluminum.

They are widely used in wing panels, fuselage skins,upper and lower edge bars of wing spars,fuselage girders, seat slides, keel beams, side frames,etc.

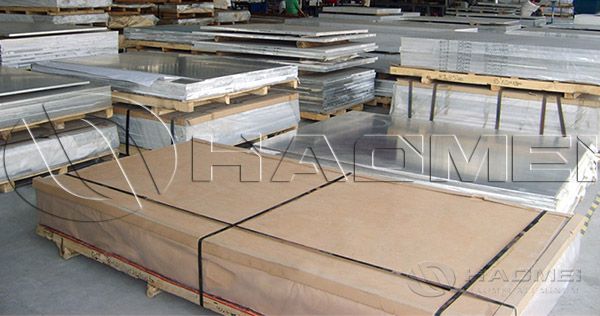

 airplane aluminum.jpg

The alloys of aircraft grade aluminum sheet

  • Al-Mg-Cu alloy: The typical ones are 2A12, 2017A, 2024 aluminum plate,etc. They are of high strength, fatigue resistance and good plasticity to make skins, bulkheads, wing ribs, etc.

  • Al-Zn-Mg-Cu alloy: The typical ones are 7075, 7A09 and 7050. They feature high strength, high yield strength and large load,which is used to make the upper wing ski and beams.

  • Al-Mg alloy: The common ones are 5A02, 5A06 and 5B05. It has high corrosion resistance, fatigue resistance, good plasticity and weldability, which is used to make fuel tank, oil pipes, etc.

  • Forged aluminum plate: The typical one is 6A02, having high hardness and good corrosion resistance. It can be used to make engine parts, joints, etc.

The specification of aircraft grade aluminum sheet

Series

Alloys

Temper

Thickness

(mm)

Width

(mm)

Length

mm

Applications

2xxxx

2A11

T4, T6, T351

1.0-500

800-2650

500-16000

Aerospace structural parts, skins, ordinary frames,door frame pads, lower long truss, front and rear wing beams

2A12

O, T3, T4, T351, H112

2A14

T4, T6, T351

2014

O, T3, T4, T351,H112

2017

O, T3, T4, T351,H112

2024

O, T3, T4, T351, T861,T3511,T8611

5xxx

5052

O, H24, H32, H34, H112

0.5-500

20-2650

500-16000

Aircraft spoiler core, forged blank structural parts, fuel tank

5086

O, H12, H24, H32, H34, H112

5A06

H112

6XXX

6061

O, T4, T6, T651

0.3-500

100-2800

500-16000

Aircraft welding parts, spare parts

6082

O, T4, T6, T651

7XXX

7050

O,T6,T651,T7451

1-500

<2600

<8000

wing panels,fuselage skins,passenger observation window frame, keel beam belly

7075

F, O, T6, T651, T7451, H112
