Marine Grade Aluminum Sheets For Sale
The marine grade aluminum sheets we offer
The marine grade aluminum sheets are an important indicator to measure the comprehensive strength of aluminum sheet manufacturers. Haomei marine aluminum sheet has passed the certification of CSS, ABS,DNV,NK and LR. Our 5053, 5086 and 5052 marine grade aluminum has been widely accepted by the global shipbuilding market.
The typical marine grade aluminum plate
Marine grade aluminium 5083: It has beautiful anodizing effect. With magnesium as an main element, it has good corrosion resistance and weldability, and medium strength. It is widely used in marine applications such as ships, as well as automobiles, aircraft welding parts, subway light rails, and tankers.
5052 marine grade aluminium: It is the most widely used anti-rust aluminum. It has high fatigue resistance, high plasticity, good corrosion resistance and good weldability.
Aluminum alloy 5086: It is often used in occasions that require high corrosion resistance, good weldability and medium strength, such as weldable parts for ships, automobiles and aircraft plates.

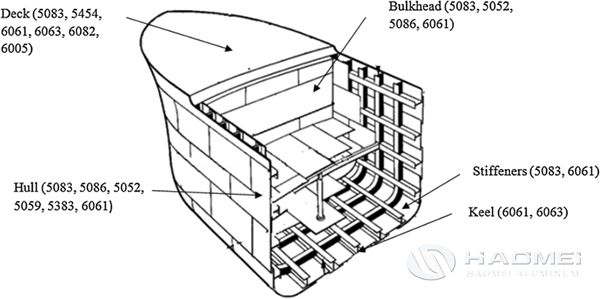

The main applications of marine grade aluminum sheets for sale
Marine aluminum plates are mainly 5 series and 6 series aluminum alloys, including 5083, 5086, 5052, 5383, 5454, 5456, 5754, 6061, 6063,etc. They are mainly used in deck, engine pedestal, side of the ship, bottom outer plate and other components of ships such as yachts, grain ships, fishing boats, work boats, sand ships, etc.
Application | Alloy |
Side and bottom of the ship | 5083,5086,5456,5052 |
Keel | 5083 |
Boat ribs | 5083 |
Ship's ribs and cabin | 5083,6061 |
Engine pedestal... | 5083 |
Deck | 5052,5083,5086,5456,5454,7039 |
Wheelhouse | 5083,6N01，5052 |
Bulwark | 5083 |
Chimney | 5083,5052 |
Top and side panels of marine vessels | 3003,3004,5052 |
Porthole | 5052,5083,6063 |
Gangway | 5052,5083,6063,6061 |
Mast | 5052,5083,6063,6061 |
Structural materials for marine vessels | 6063,6061,7003 |
How to decide the thickness of marine aluminum plate
The thickness of the marine aluminum plate is determined by the structure of the hull, the specifications of the ship, and the parts used. The general choice includes the thin aluminium plate above 1.6 mm and the thick aluminum plate above 30 mm. The aluminum tread plate is often used for the deck and stairs. Haomei Aluminum can customize some special specifications according to the needs of customers.
The Specification of marine grade aluminum sheets for sale
Alloy | Temper | Thickness(mm) | Width(mm) | Length(mm) |
5083 | O, H12, H112,H321 | 1-500 | 500-2650 | 500-16000 |
5086 | O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38, H111, H112, H114, H116, H32 | 0.15-600 | 20-2650 | 500-16000 |
5052 | O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38, H111, H112, H114, H116, H321 | 1.0-500 | 20-2650 | 500-16000 |
5059 | O,H | 1-500 | 500-2650 | 500-16000 |
5A02 | O,H12,H14, H16,H18,H19, H22,H24,H26, H28,H32,H34 H36,H38,H111, H112,H114,H 116,H321 | 0.15-600 | 20-2600 | 500-16000 |
5005 | O,H12,H14, H16,H18,H19, H22,H24,H26, H28,H32,H34 H36,H38,H111, H112,H114,H 116,H321 | 0.15-600 | 20-2600 | 500-16000 |
5454 | H32，H34 | 3-500 | 600-2600 | 500-16000 |
6061 | T4，T6，T651 | 0.2-500 | 600-2600 | 500-16000 |
6005 | O, T4, T6, T651 | 0.3-600 | 500-2600 | 500-16000 |
