The Popular Types of Embossed Aluminum Tread Plates

The production of embossed aluminum tread plate is to re-roll the machine on the patterned roller after the aluminum plate is processed. The pattern is convex and clear. The main purposes are for anti-skid and decoration.

The common alloy grades of the aluminum tread plate are 1100, 1060, 3003, 5052, 5754, 6061, 6082, 6062, etc. The normal thickness range is 0.8-7.0mm, and Haomei patterned aluminum plate has a patterning rate of 100%. It has good oxidation resistance and corrosion resistance, strong weather resistance, and has a service life of more than 20 years.

embossed aluminum tread plate.jpg

The common patterns are orange peel, one bar, two bar, three bar, five bar, diamond, lentil,etc. The common ones in the market are 5 bar aluminum plate and small 5 bar aluminum checker plate. It is widely used in transportation, construction, decoration, shipbuilding,etc.

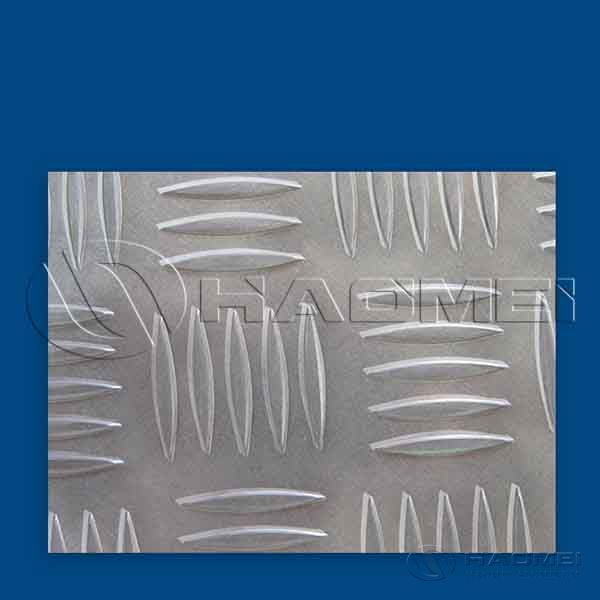

5 bar aluminum tread plate

It is used more in the automobile industry. 5 bar aluminium diamond plate is generally used in the fenders of the car. After all, the density of the aluminum plate is relatively small. Compared with the same hardness alloy, 5 bars are used.

Orange peel pattern aluminum plate

As a household appliance that is commonly used in our daily life, we seem to be familiar with refrigerators. The linings of refrigerators that we often see are made of embossed aluminum plates, generally 0.5mm thick orange peel embossed aluminium plate. In addition, embossed aluminum plates have been habitually used in the inner tray of the refrigerator, the condenser of the refrigerator, the condenser tube, etc

Orange peel embossed aluminum sheet (embossed aluminum coil) is a product made of aluminum coil material through pressure processing by orange embossing equipment. Because the pattern style is similar to orange peel texture, the aluminum coil is called orange peel embossed plate.

Orange peel embossed aluminum coil is used in the refrigerator, air conditioning and refrigeration industry (the surface area increases after embossing, which is conducive to dissipating temperature), and the pipeline insulation industry.

As one of the big embossed aluminum sheet suppliers, Haomei Aluminum has orange peel embossed aluminum coils with thickness of 0.2, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.65, 0.7, 0.8, 1.0, 1.2 mm. Welcome to leave message below to inquire what you need.
