A Highlight of Aluminum Embossing Sheets

The aluminium embossing sheets are made of aluminum plate through external mechanical processing. It is rolled on the basis of the aluminum flat plate with a roller press to form a convex pattern on the surface of the aluminum plate. The main alloys are 1060, 1100, 3003 and 5052.

Its two popular patterns are 5 bar aluminum tread plate and orange peel pattern aluminum sheet. Since the pattern on the surface of the aluminum plate is arranged in parallel according to five convex patterns, and each pattern is at an angle of 60-80 degrees with other patterns, this pattern has excellent anti-slip performance. Haomei Aluminum can provide 5 bar aluminum diamond sheet with a thickness of 0.8-8.0mm.

aluminium embossing sheets.jpg

The surface of the orange peel pattern aluminum plate presents a pattern similar to that of orange peel. It can generally be used as a heat preservation insulation layer and is used in refrigerators, freezers, air conditioners, and packaging. We can provide it with a thickness of between 0.15-3mm.

Rolling is a common method for making patterned aluminum plates. The main principle is to press patterns on the surface of aluminum plates to form uneven patterns and lines. Rolling can be divided into two types: one is to roll on the aluminum plate through a mold, and the other is to roll the aluminum plate using a roller press.

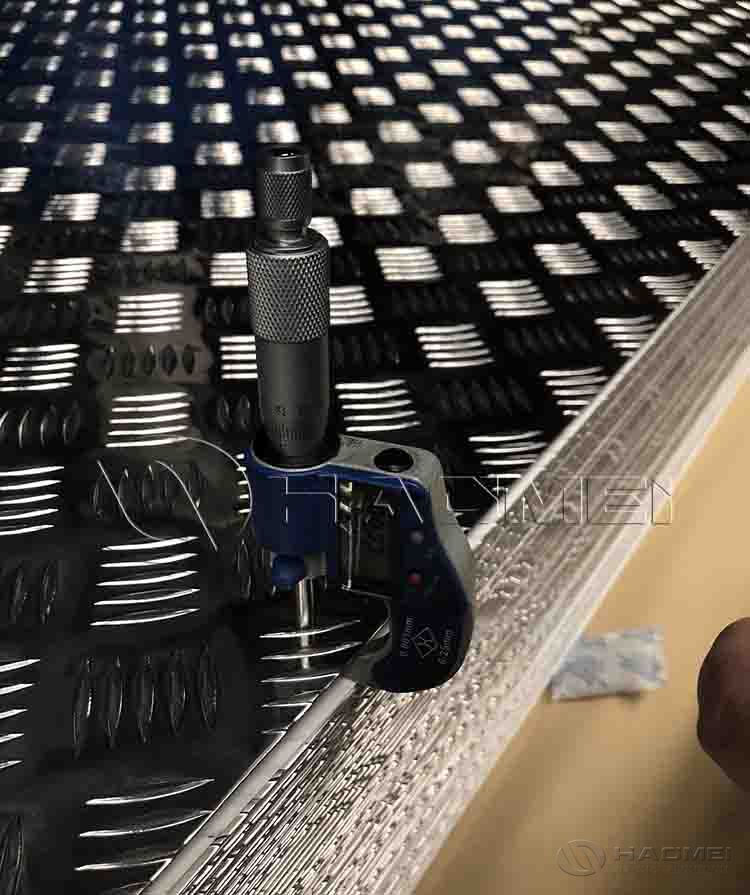

The quality of embossed aluminum sheets is mainly reflected in the pattern formation rate, pattern height, and pattern height difference. The aluminum embossed sheet not only has a good surface, but also has relatively high requirements in pattern height, aluminum plate thickness, surface quality, external dimensions, and mechanical properties. Usually we need to inspect its quality according to the international standards or customer requirements.

The pattern height of aluminum checker plate an reach 1.0-2.0mm in China, and 0.8mm is the mainstream. In conventional applications, the pattern height of 0.8mm is sufficient for anti-slip use, and this height can also achieve good anti-slip effect in projects at home an broad. Welcome to buy embossed aluminum from us.

Original source:

Tags:aluminum tread plate
