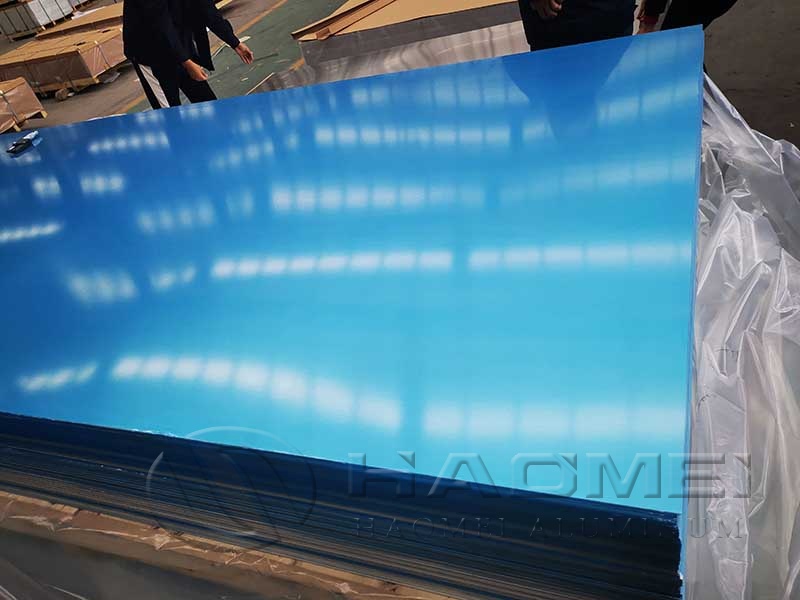

3105 VS 3003 Aluminum
Choosing between 3105 and 3003 aluminum often comes down to one practical concern: will the material retain adequate strength after forming without creating surface or cracking problems? Both are non-heat-treatable 3xxx series alloys with manganese-based chemistry, good atmospheric corrosion resistance, and broad availability in flat-rolled forms.
However, their compositions, temper options, and common applications are not identical. 3003 is widely selected where dependable forming and drawing performance are required. 3105 contains magnesium as an additional alloying element and is frequently specified for painted building products, especially formed panels and roofing profiles.
Composition and Mechanical Differences That Affect Forming
The Aluminum Association registration records define alloy chemistry. ASTM B209/B209M covers common requirements for aluminum and aluminum-alloy sheet and plate. Mechanical acceptance values must be confirmed by alloy, temper, and thickness on the applicable ASTM edition and mill test certificate.
| Property | 3003 Aluminum | 3105 Aluminum | Purchasing Impact |
|---|---|---|---|
| Main alloying element | Manganese, 1.0%-1.5% | Manganese, 0.3%-0.8% plus magnesium, 0.2%-0.8% | 3105 gains strength from magnesium; 3003 has higher manganese content. |
| Copper limit/range | 0.05%-0.20% | 0.30% maximum | Chemistry must match the stated alloy specification, not only a trade name. |
| Heat treatment response | Not heat treatable | Not heat treatable | Strength is developed mainly through cold work, such as H14 or H16 temper. |
| Formability | Very good, particularly in O temper | Good, with attention to bend radius and temper | 3003 is generally preferred for deeper drawing operations. |
| Common painted-product use | General panels, cladding, utensils, tanks | Roofing, siding, gutters, shutters, coated building panels | 3105 is a frequent choice where roll forming and paint finish are both required. |
| Corrosion behavior | Good in normal atmospheric exposure | Good in normal atmospheric exposure | Neither alloy automatically qualifies as marine-grade material. |
Published composition limits should be checked against ANSI H35.1/H35.1M, the Aluminum Association standard for alloy designation and chemical composition. For contractual orders, require a mill test certificate showing heat number, chemistry, temper, thickness, width, tensile properties, and yield properties where applicable.
A useful rule for preliminary selection is simple: select 3003 when formability is the priority, then select 3105 when a stronger, paint-ready architectural product is required. This is not a substitute for a forming trial, because bend performance changes substantially between O, H12, H14, H16, and H18 tempers.
Select the Alloy by Application, Temper, and Processing Route
Avoid selecting solely by alloy number. The finished part determines the appropriate temper, coil geometry, surface condition, and testing plan.
| End use | Better starting option | Why | Specification check |
|---|---|---|---|
| Deep-drawn cookware, small tanks, drawn covers | 3003-O or a light H temper | Better tolerance for substantial drawing and shaping | Define drawing ratio, lubricant, earing limit, and surface class. |
| General fabricated panels and stamped parts | 3003-H14 | Widely used balance of strength and workability | Confirm minimum bend radius and required flatness. |
| Prepainted roofing and wall panels | 3105-H14 or H16 | Common architectural alloy for roll-formed coated products | Define coating system, T-bend requirement, gloss, and paint adhesion test. |
| Gutters, fascia, shutters, and trim | 3105-H14 | Suitable strength for formed building components | Confirm profile depth, bend direction, and coating warranty requirements. |
| Circles for spinning or forming | 3003-O | Softer temper supports severe deformation | Require grain control, burr limits, and diameter tolerance. |
| Light-gauge packaging or insulation-facing material | Application dependent | Alloy and temper depend on stiffness and forming requirements | State thickness tolerance, pinhole requirement, and surface treatment. |
For roofing projects, 3105 is often specified in prepainted coil because its mechanical balance supports roll forming while maintaining a durable finish. A product specification for a Corrugated Aluminum Roofing Sheet China Supplier should state the substrate alloy and temper separately from paint thickness. "Color aluminum" alone does not confirm whether the substrate is 3105, 3003, or another alloy.
Conversely, 3003 should be considered before 3105 when the operation involves demanding draw depth, spinning, or multiple forming stages. A harder 3105 temper can crack at tight bends if the bend radius, rolling direction, and coating flexibility are not controlled.
Specification Checklist for Reliable Supply and Quality Control
Use this checklist in the purchase order and technical agreement. It reduces disputes caused by incomplete alloy or coating descriptions.
| Item to specify | Recommended requirement |
|---|---|
| Alloy designation | State 3003 or 3105, not only "3xxx aluminum." |
| Product standard | Identify ASTM B209/B209M, EN 485, or another mutually agreed standard and revision. |
| Temper | State O, H12, H14, H16, or another required temper. Do not assume "half hard" has the same meaning across all requirements. |

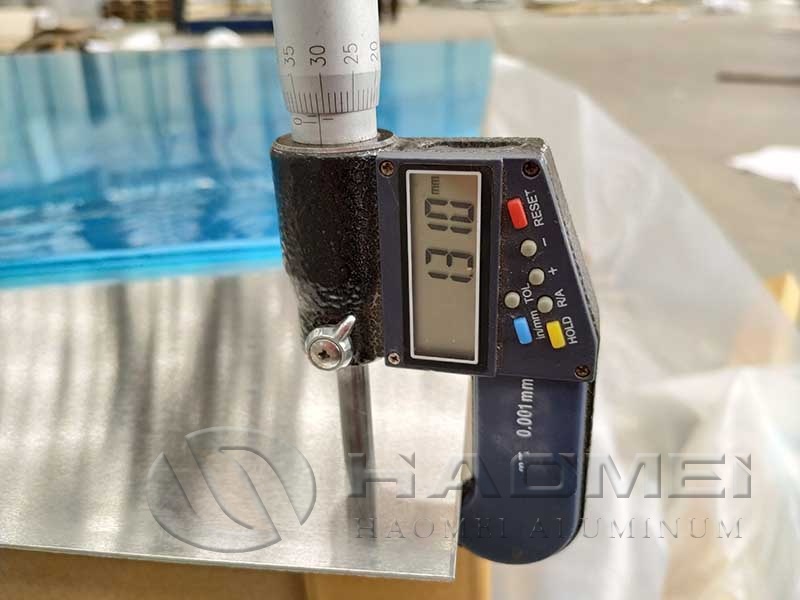

| Dimensions | Nominal thickness, width, length or coil ID/OD, plus allowable tolerances. |
| Surface | Mill finish, degreased, stucco embossed, coated, or other defined finish; identify acceptable scratches, oil, and edge condition. |
| Forming validation | Provide bend angle, inside radius, bend direction, and whether testing occurs before or after coating. |
| Coated products | Define paint type, dry-film thickness, color standard, gloss, adhesion, impact, pencil hardness, and corrosion test method where required. |
| Documentation | Request mill test certificate, packing list, coil labels, and traceable heat or lot identification. |
For projects requiring varied dimensions, align thickness tolerances with the forming process before release. The available Aluminum Sheet Plate program should be reviewed against required flatness, edge quality, and cut-length tolerances rather than nominal gauge alone.
| If your priority is... | Specify first |
|---|---|
| Deep drawing, spinning, or high formability | 3003 in O or a lighter strain-hardened temper |
| Painted roofing, siding, gutters, or roll-formed trims | 3105 in the temper validated for the profile |
| Stable quality across repeated forming runs | Approved sample, documented bend test, and mill test certificate |
| Avoiding coating cracks on formed panels | Substrate temper, minimum bend radius, paint system, and post-forming adhesion test |
