Different Types of Aluminium Coil Sheets

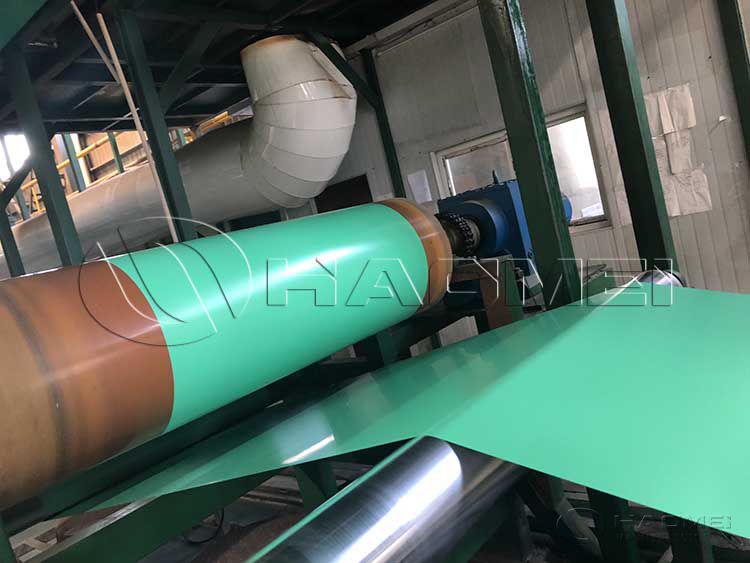

1. Color coated aluminum coil

Technology core: Coating polyester, fluorocarbon and other organic coatings on the surface of the aluminum coil sheet , and forming a protective film through high-temperature curing.

Performance advantages: weather resistance is improved by 3-5 times (fluorocarbon coating can resist UV rays for 15 years), more than 100 color options, and enhanced acid and alkali corrosion resistance.

 aluminum coil sheet.jpg

Typical applications: building curtain walls (such as the facade of the Burj Khalifa in Dubai), home appliance shells (refrigerator panels), advertising light boxes (light transmittance of 85%).

Cost structure: coating materials account for 20-30% of the total cost, and the price of fluorocarbon coating is 3 times that of ordinary polyester.

2. Insulation aluminum coil

Structural design: It is composed of aluminum coil and insulation materials such as polysurlyn, polyurethane and rock wool, with a thickness controlled at 1.5-5mm.

Technological breakthrough: thermal conductivity as low as 0.02W/(m・K), fire protection level up to B1, compressive strength ≥200kPa.

Market application: cold chain logistics carriage (insulation layer thickness affects transportation cost), industrial pipeline insulation (reducing heat loss by 40%), building energy-saving transformation (demand in the northern region accounts for 60%).

Price sensitive point: For every 10kg/m³ increase in insulation material density, the cost increases by 5-8%.

3. Coated aluminum coil

Special coatings:

① Self-cleaning coating (TiO₂ photocatalytic decomposition of organic matter)

② Antibacterial coating (silver ion sustained release technology, antibacterial rate > 99%)

③ Anti-slip coating (friction coefficient increased to above 0.8)

Innovation scenarios: hospital operating room wall panels (antibacterial coating), ship decks (anti-slip treatment), solar panel frames (anti-reflective coating).

Technical threshold: Nano-level coating uniformity control, high-precision coating equipment is required.

4. Embossed aluminum coil

Grain technology: orange peel grain (anti-fingerprint), diamond grain (enhanced friction), wood grain transfer (simulation degree up to 90%).

Performance optimization: compressive strength increased by 15-20%, surface area increased by 10% to enhance heat dissipation.

Consumer scenarios: elevator interior (anti-fingerprint), lamp reflector (diffuse reflection effect), high-end gift packaging (metallic gloss texture).

Processing cost: precision mold costs account for 40% of equipment investment.

5. Laminated aluminum coil

Film type: PE film (anti-scratch), PET film (high temperature resistance 120℃), composite film (both barrier and weldability).

Application value:

Building exterior wall: protective film can reduce 90% scratches during transportation and installation

Automotive parts: avoid direct contact of metal with mold during stamping

Electronic products: antistatic film protects precision components

Cost difference: the price of imported Japanese protective film is 2-3 times that of domestically produced, but the peeling force stability is increased by 50%.

6. Anodized aluminum coil

Process: sulfuric acid anodizing (most mature process), hard anodizing (film thickness > 50μm).

Technical parameters: The porosity is 15-20%. It can adsorb dyes or ceramic particles to improve functionality.

High-end market: aerospace fasteners (salt spray test > 1000 hours), rail transit conductor rails (wear resistance increased by 3 times).

Environmental challenges: wastewater treatment costs account for 15% of the total cost, and a matching RO reverse osmosis system is required.

Factors affecting price

Process complexity: For every additional coating layer, the cost increases by 8-12% (such as three-coat and two-bake process)

Raw material grade: The price difference between A00 aluminum ingot and recycled aluminum can reach 2,000 yuan/ton

Equipment depreciation: The value of a single imported precision coating machine exceeds 50 million yuan, with an annual depreciation rate of 15%

Environmental protection investment: VOCs treatment equipment investment accounts for 8-10% of total production capacity.

Haomei Aluminum has different types of aluminum coils. Welcome to inquire the aluminum coil price from us.
