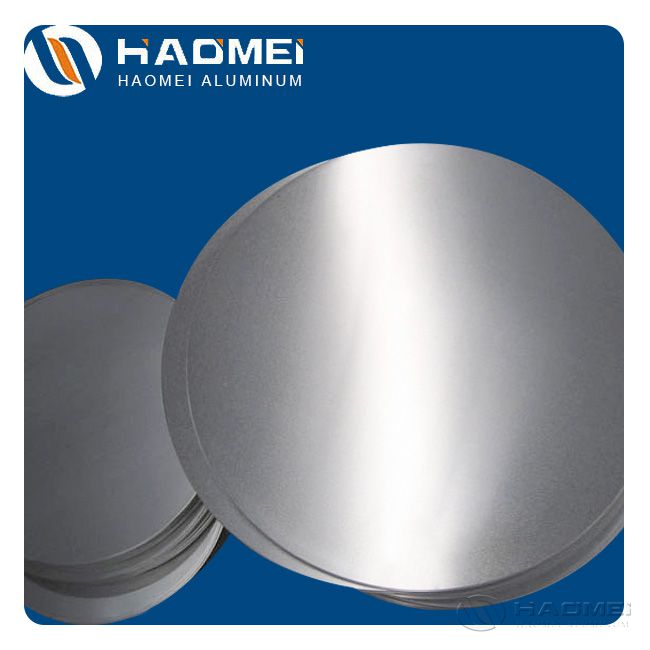

The Main Alloy Element of Aluminum Round Discs
The aluminum round discs are widely used in cookware, lamps,traffic signs, aluminum cans, cans head. Because of simple processing craft and good performance such as stamping, it is widely used to make aluminum pan, aluminum disk, Pizza plate, aluminum barrels,etc in South Africa, Middle East, South America and North America.
1. The common alloy
1xxx aluminum alloy: 1050, 1060,1100 and 1200
3xxx aluminum alloy: 3003
5xxx aluminum alloy: 5052
2. Temper
The common tempers are O, H12, H14, H18.
3. Surface: Mill finish, non-stick coating
4. Production process: cold rolling, hot rolling
5. Alloy element of circular aluminum plate
Chemistry Composition | |||||||||
Alloy | Si | Fe | Cu | Mn | Mg | Zn | Ti | Al | Cr |
1050 | 0.250 | 0.400 | 0.050 | 0.050 | 0.050 | 0.050 | 0.030 | 99.5 | / |
1060 | 0.250 | 0.350 | 0.050 | 0.030 | 0.030 | 0.050 | 0.030 | 99.6 | / |
1070 | 0.200 | 0.250 | 0.040 | 0.030 | 0.030 | 0.040 | 0.030 | 99.7 | / |
1100 | 0.95 | 0.05-0.2 | 0.050 | / | 0.100 | / | 99.0 | / | |
1200 | 1.00 | 0.050 | 0.050 | / | 0.100 | 0.100 | 99.0 | / | |
1145 | 0.55 | 0.050 | 0.050 | 0.050 | 0.050 | / | 99.45 | / | |
6. Common molds of aluminum metal blanks
Φ140mm、Φ160、Φ170、Φ172mm、Φ180、Φ190、Φ200、Φ204mm、Φ208、
Φ280mm、Φ240、Φ252、Φ248、Φ260、Φ265、Φ268、Φ275、Φ270、Φ275、
Φ210mm、Φ219mm、Φ215、Φ228、Φ230、Φ234、Φ240mm、Φ250mm、Φ260mm、
Φ290、Φ295、Φ300、Φ305、Φ310、Φ315、Φ320、Φ325、Φ335、Φ330mm、
Φ340、Φ350mm、Φ360mm、Φ370mm、Φ380mm、Φ390mm、Φ395mm、Φ400mm、
Φ350、Φ355、Φ360、Φ370、Φ375、Φ380、Φ390、Φ395、Φ400、Φ405、
Φ407、Φ410、Φ415、Φ420、Φ425、Φ430、Φ435、Φ440、Φ450、Φ460、
Φ620、Φ470、Φ480、Φ500、Φ510、Φ520、Φ540、Φ560、Φ580、Φ580、
Φ600、Φ635、Φ650、Φ665、Φ680、Φ710、Φ715、Φ730、Φ750、Φ760、
Φ765、Φ780、Φ810、Φ820、Φ900、Φ920、Φ950、Φ1000、Φ1100、Φ1250、Φ1300
